Product profile

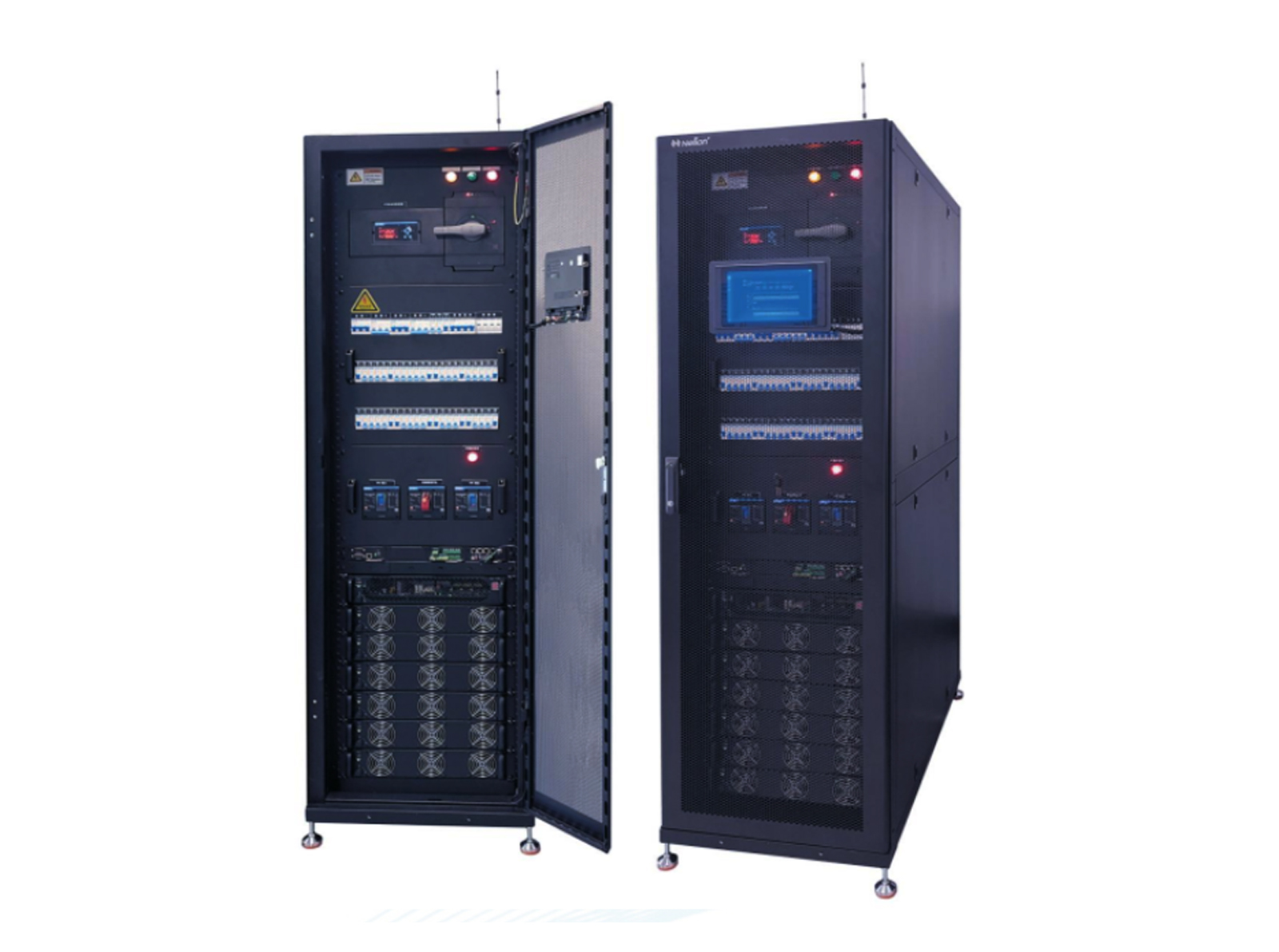

The company's second generation PDM series integrated UPS power supply adopts full modular design, power module 15 / 20 / 25 / 30 kVA optional, capacity covering each power segment between 15 kVA and 180 kVA, convenient for users to flexible configuration and gradual investment. Power distribution is flexible and optional, with direct load. The product integrates modular UPS, precision power distribution, intelligent monitoring three systems, the machine room power one cabinet to solve. It can fully eliminate the impact of various power grid problems on key loads, has the characteristics of reliable, efficient, intelligent, flexible and simple maintenance, and can provide ideal power supply protection for customers in medium-sized power supply scenarios. Products are highly integrated, with cost saving, space saving, simplified installation and debugging and operation and maintenance management.
Application area
Small and medium-sized data center, IT computer room, financial institutions, traffic dispatch center, security monitoring, etc.
Features and advantages
1. Set power cabinet, modular UPS, output cabinet and intelligent monitoring four functions to realize the integration of multiple cabinets and save space.
2. 10.1 inch color touch control screen, built-in Chinese / English one-button switching function interface, for UPS, power distribution operation control, operation status view, parameter setting, alarm view and other functions. Easy to quickly view the current device status, and can touch the local control.
3. Strong access ability, can flexibly expand the moving ring monitoring function. Support intelligent equipment and DI dry contact input equipment connected by RS485 and TCP communication mode, can expand the room access control management, temperature and humidity, fire protection, battery management, precision air conditioning monitoring, SMS alarm and other functions, to achieve multi-effect integration.
4. Built-in web service, which can be remotely monitored and managed through the browser and APP.
5. Support custom alarm configuration, alarm support SMS notification (optional 4G version) and email push (need to be connected to the external network).
6. The data can be uploaded to the centralized management platform through the northbound interface, and the local data can be exported to the U disk.
7. large capacity storage, with 4G storage capacity, can be expanded through TF card, the maximum support of 128G, historical data can be stored for 1 year, offline real-time storage for 7 days.
8. Ultra-wide input voltage range of 138 V ~ 485 Vac, 305 ~ 485 Vac, 138 ~ 305 Vac linear decrease, adapted to the harsh power grid.
9. Full modular design of power module, bypass module and control module.
10. Each module supports hot plug, which is convenient for users to flexibly configure and invest gradually in, and easy to maintain.
11. The mains input mode is optional. Dual input is standard equipped with PC class ATS with fire control function, which has fast switching response and ensures the continuity and safety of power supply.
12. UPS can share the battery pack, and the number of external battery pack segments 30-50 is flexible and adjustable.
Product mix
Product model | MP-90K-PDM - MCCB160 | MP-90K-PDM - ATS160 | MP-120K-PDM - MCCB250 | MP-120K-PDM - ATS250 | MP-150K-PDM - MCCB400 | MP-150K-PDM - ATS400 | MP-180K-PDM - MCCB630 | MP-180K-PDM - ATS630 | ||
Total output capacity of the cabinet | 105kVA | 150kVA | 250kVA | 400kVA | ||||||
UPS | UPS frame capacity | 90kVA/90kW | 120kVA/120kW | 150kVA/150kW | 180kVA/180kW | |||||
Adaptation module specifications | 15 / 20 / 25 / 30 kVA (kW) height: 2U | |||||||||
Maximum number of modules | 3 | 4 | 5 | 6 | ||||||
Import | Enter the system | Three-phase, four-wire + PE | ||||||||
Rated input voltage | 380 Vac / 400 Vac / 415 Vac (line voltage) | |||||||||
Input voltage range | 138 to 485 Vac; 305 to 485 Vac, 138 to 305 Vac. | |||||||||
Input frequency range | 40Hz ～70Hz | |||||||||
Input power factor | > 0.99 | |||||||||
Input current harmonic component | THDi 3% (linear load, highest point reached); THDi 5% (non-linear load, highest point reached). | |||||||||
Bypass | Rated AC voltage | 380 Vac / 400 Vac / 415 Vac three-phase four-wire, common mid-line with the rectifier input, to provide a mid-line reference for the output. | ||||||||
Overload | <110%, 1="" 5="" long-term="">150%, 1 second. | |||||||||
Rated midline current | 1.7 ×In | |||||||||
Frequency | 50/60Hz | |||||||||
Switching period | ≤2mS | |||||||||
Bypass voltage range | Can be set: upper limit: + 5%, + 10%, + 15%, + 20%, + 25%, default is + 15%; lower limit: -20%, -30%, -45%, default is-20%. | |||||||||
Output | Output system | Three-phase four wire + PE (midline with bypass) | ||||||||
Rated output voltage | 220 Vac / 230 Vac / 240 Vac (phase voltage) | |||||||||
Stable pressure accuracy | ± 1% (balanced load) | |||||||||
Rated output frequency | 50/60Hz | |||||||||
Output power factor | 1 | |||||||||
Output voltage imbalance degree | ± 1% (0 to 100% Linear load) | |||||||||
Inverse overload capacity | 100%<110% load, bypass after 60min; 110% <125% load, 10min bypass; 125% <150% load, 1min bypass; 200ms after 150% and short circuit. | |||||||||
Emergency Shutdown (EPO) | Close the output immediately | |||||||||
Cell | Supporting battery type | Standard: Valve-acid battery (VRLA) (optional lithium battery) | ||||||||
Battery voltage | ±180 ~ ±300Vdc | |||||||||
Number of battery parallel groups | Group 1 ~8 | |||||||||
Battery section number | 30 ~50 (12V battery, default 12V battery 40, battery number double number adjustment) | |||||||||
Floating charge voltage | 2.25V / cell (with a range: 2.20V / cell ~2.30V / cell) | |||||||||
Temperature compensation | -3.0 mV / Cell / ℃?(range: 0- -5.0) | |||||||||
Generalized voltage | 2.35V / cell (available range: 2.30V / cell ~2.40V / cell) | |||||||||
Final discharging voltage | 1.80V / cell (available range: 1.60V / cell ~1.90V / cell) | |||||||||
Maximum charging current | Range: (1 ~15A) * number of modules | |||||||||
Distributing | Input mode | Single-way three-phase four-wire + PE | Double-road, three-phase and four-wire + PE | Single-way three-phase four-wire + PE | Double-road, three-phase and four-wire + PE | Single-way three-phase four-wire + PE | Double-road, three-phase and four-wire + PE | Single-way three-phase four-wire + PE | Double-road, three-phase and four-wire + PE | |
Input specification | MCCB160A/3P | PC grade ATS160A / 4P | MCCB250A/3P | PC grade ATS250A / 4P | MCCB400A/3P | PC grade ATS400A / 4P | MCCB630A/3P | PC grade ATS630A / 4P | ||
UPS distributing | Input, bypass, output, maintenance bypass: 100A / 3P * 4, MCCB | Input, bypass, output, maintenance bypass: 160A / 3P * 4, MCCB | Input, bypass, output, maintenance bypass: 250A / 3P * 4, MCCB | Input, output and maintenance bypass: 250A / 3P * 3, MCCB | ||||||
Live load | Air conditioning: 63A / 3P / 4, mains: 10A / 1P / 3. | |||||||||
IT load | (32A / 1P * 15 + 63A / 1P * 3) * 2 road, MCB | (32A / 1P * 21 + 63A / 1P * 3) * 2 road, MCB | (32A / 1P * 21 + 63A / 1P * 3) * 2 road, MCB | (40A / 1P * 18 + 63A / 1P * 6) * 2 road, MCB | ||||||
Lightning protection | Class C lightning protection, 20 kA / 4P. | |||||||||
Supervisory control | Standard configuration | Full power parameters and switch status monitoring of main / branch distribution; Monitoring of complete UPS operating parameters and operating parameters of each module unit; Browser Remote access monitoring system, Remote viewing, setting, and control (connected to the external network); Email and wechat alarm, Mobile APP remote monitoring management (connected to external network); Support for the Modbus TCP / SNMP northbound interface; The monitoring content also includes: equipment real-time status query, alarm query, historical data query, system log query, alarm event management, alarm notification mode, user alarm Settings, alarm notification record, alarm linkage record, equipment management, user management, system Settings and other functions; | ||||||||
Apolegamy | Air conditioning monitoring, battery management, access control management, local sound and optical alarm, SMS alarm or telephone SMS two-in-one alarm, environmental temperature and humidity monitoring, water leakage detection, smoke detection, rack embedded fire extinguisher, etc. | |||||||||
System | System effectiveness | > 95.5% | ||||||||
Levels of protection | IP20 | |||||||||
Communication interface | Dry contacts, RS485, and SNMP | |||||||||
Running temperature | 0～40℃ | |||||||||
Storage temperature | -25 ～70℃ | |||||||||
Relative humidity | 5 ~ 95% RH (no condensation) | |||||||||
Above sea level | 0 ~1000m (IEC62040-3 standard above 1000m, up to 4000m) | |||||||||
Physical characteristics | Reference weight | 327kg | 332kg | 356kg | 363kg | 397kg | 407kg | 422kg | 430kg | |
Dimensions (W * D * H) | 600*1100*2000mm/600*1200*2000mm | |||||||||
Operative norm | CE ,EN/IEC 62040-2 ,EN/IEC 62040-1-1 ,YD/T 2165-2017 | |||||||||
